1. The ratio of length to diameter of the threaded rod is large, and the mixing section is strengthened as the standard configuration, which can ensure homogeneous color mixture, less back pressure of sol and support higher rotate speed of sol;

2. The imported steels are used for the plasticizing components, and the bad phenomena of filamentary silver, whitening, dark spots and high AA value are avoided through the specific heat treatment process, so that the plasticizing quality can be obviously improved;

3. Compared with the standard machine, the machine has a larger sol oil motor, simultaneously, the imported bearings are used, so that the actual pressure of sol is low, the load is light, the density of sol is stable and the back pressure is easy to adjust;

4. More than five stages of temperature control are used;

5. The whole series of machine types increase the ejecting force;

6. The power allocation is increased by one level based on the special machines in the general industry, and the displacement output is improved, so that the high-speed PET special machine in a real sense is achieved.

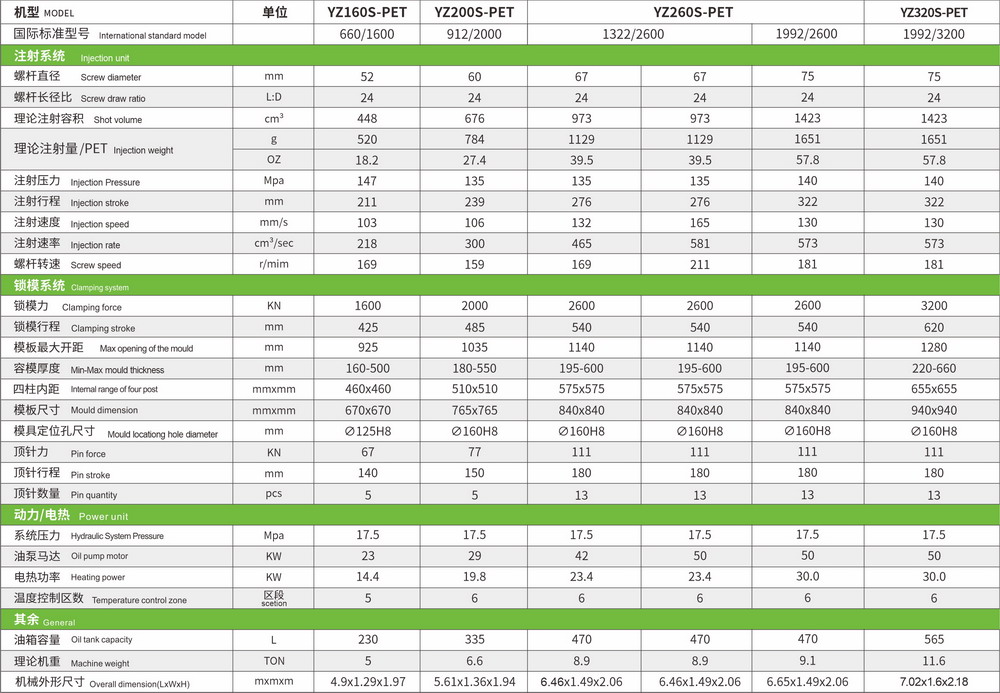

PET Injection Molding Machine Parameter (for PET Jar, cosmetics preform)

The model number "S" stands for servo, "B" stands for variable pump, we can customize the configuration according to the user's needs and provide one-stop overall technical solutions.

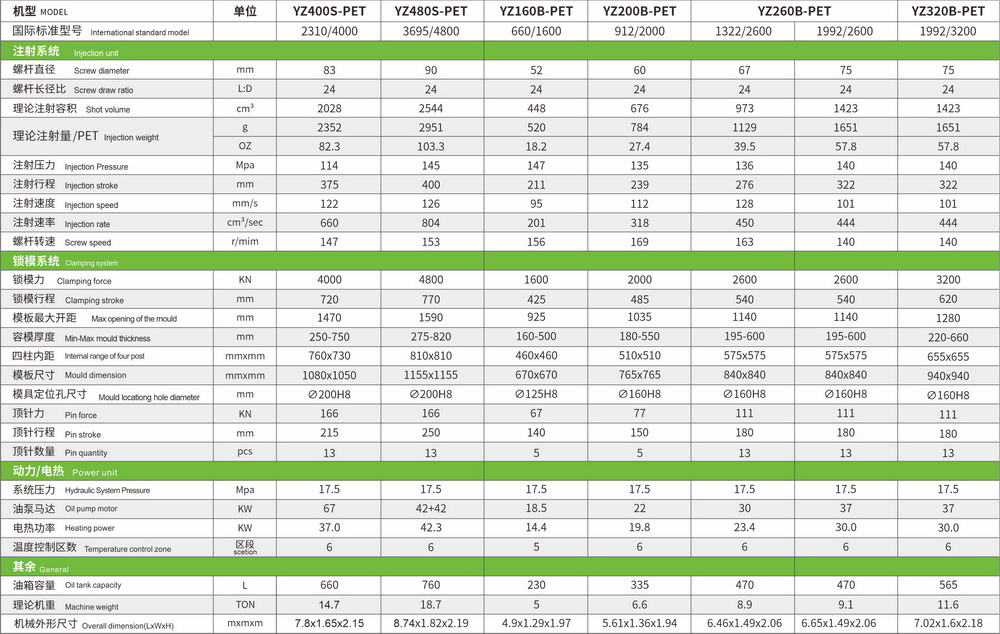

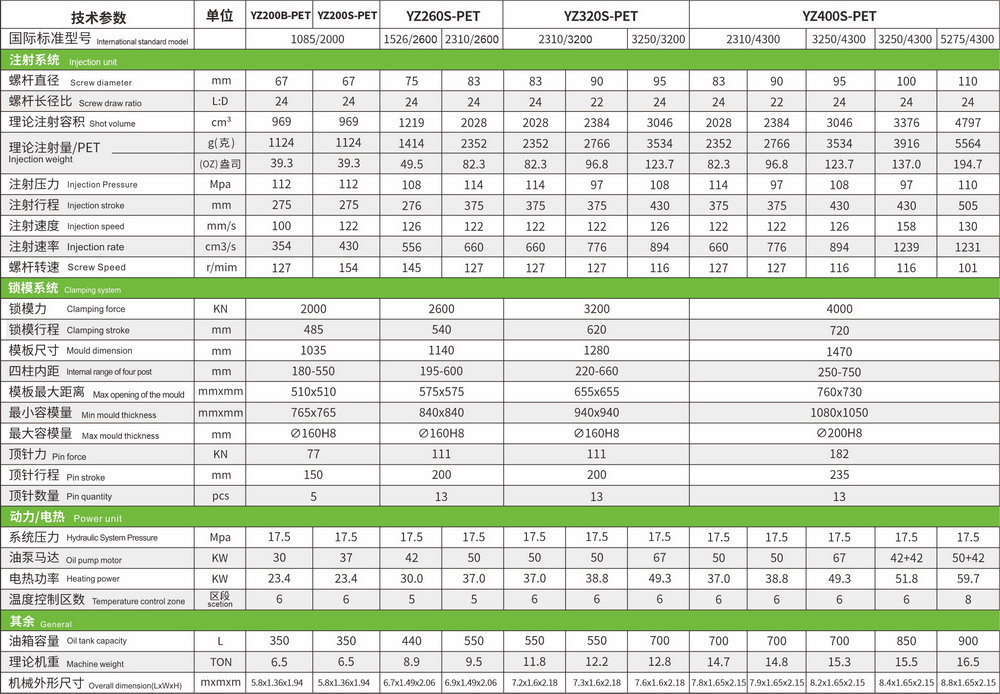

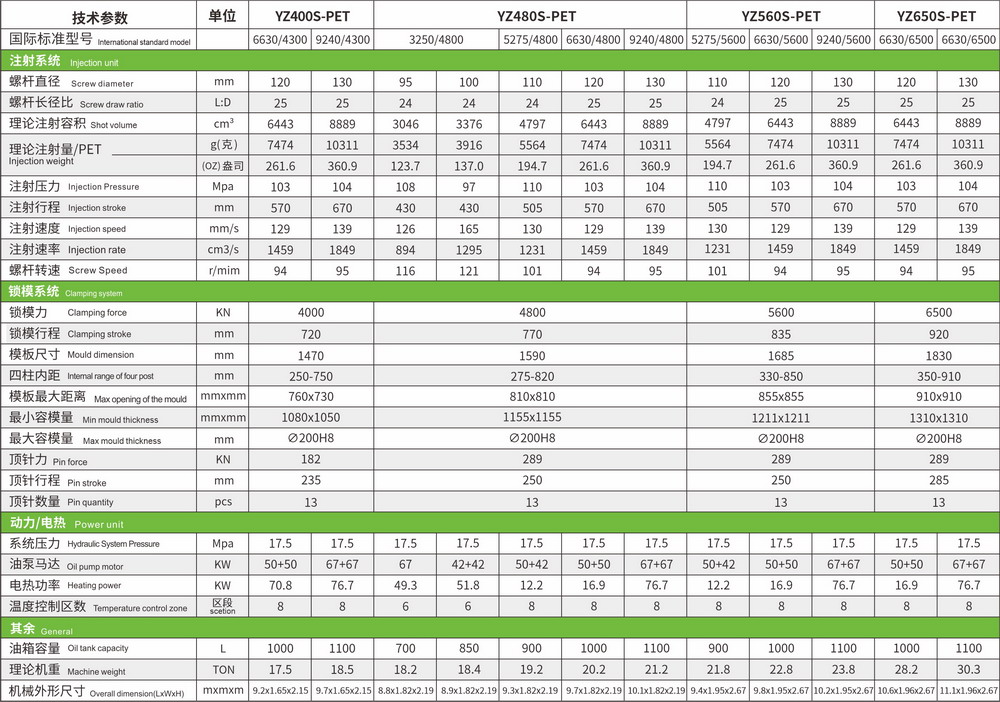

PET Injection Molding Machine Parameter (for Beverages Preform, Water & Oil Preform)

The model number "S" stands for servo, "B" stands for variable pump, we can customize the configuration according to the user's needs and provide one-stop overall technical solutions.

The company reserves the right to modify the technical parameters without notice.
Note:

Servo power is a variable value, the power data will be different under different working conditions, please refer to the machine speed parameters and the actual overload performance when comparing.
